Coating Techniques: What is Thermal Diffusion?

Thermal diffusion coating enhances industrial manufacturing material performance and component protection. This advanced coating technique creates a metallurgically bonded protective layer that becomes an integral part of the base material, offering superior protection against corrosion, oxidation, and thermal damage. As industries push the boundaries of material performance requirements, understanding thermal diffusion coating is critical for engineers and technical professionals seeking optimal surface protection solutions.

Related: Discover how plasma spraying technology delivers advanced coating solutions for demanding applications.

An Introduction to Thermal Diffusion Coatings

Definition and Principles of Thermal Diffusion

Thermal diffusion coating, also known as diffusion metalizing or chemical vapor diffusion, is a surface modification process that a metal component surface is enriched with the oxide scale formers Al, Cr, Si or their combination to a depth of 10 to 100 µm. These elements combine with the primary constituents of the substrate alloy to form new intermetallic phases that enhance the high-temperature oxidation and corrosion resistance of the substrate alloy. For example, in Ni-based superalloy, surface enrichment with aluminum forms nickel aluminide (β-NiAl), which is the predominant constitution of the coating. Diffusion coating is widely used in various industries including aerospace, power generation, space, oil & gas, petrochemical, clean energy to enhance the performance and durability of metal components.

This process consists of the following steps:

1. Generation of Al-, Cr-, or Si-containing vapors
2. Transport of the vapors to the component surface
3. Reaction of the vapors with the substrate alloy followed by associated diffusion processes within the alloy at elevated temperatures
4. Additional heat treatment as necessary to achieve desired coating composition and coating as well as substrate properties

Thermal diffusion creates an intermetallic compound layer through the atomic diffusion of coating elements into the base material's crystal structure. This process occurs at elevated temperatures under carefully controlled conditions, resulting in a graduated composition from the surface to the substrate, ensuring exceptional bonding strength and durability.

Benefits of Thermal Diffusion Coatings

Thermal diffusion offers distinct advantages that set it apart from other surface treatment methods:

• Superior Bonding Strength - The thermal diffusion process creates a metallurgical bond rather than a mechanical one, resulting in exceptional adhesion that cannot delaminate.

• Enhanced High-Temperature Oxidation and Corrosion Resistance - Forms a dense, uniform protective layer that provides superior protection against aggressive chemical environments.
• Excellent Internal Coating Capability - This non-line-of-sight process can coat external and internal surfaces of components with even the most complex geometries.
• Uniform Coverage - Provides consistent protection even on complex geometries and internal surfaces.

Material Compatibility in Thermal Diffusion

Metals Suitable for Thermal Diffusion

Diffusion coatings can be applied to various metallic alloys including:

• Low-Alloy Steels - Compatible with most thermal diffusion processes
• Stainless Steels - Suitable for high-temperature applications
• Nickel-Based Alloys - Superior high-temperature performance
• Cobalt-Based Alloys - Excellent for specialized high-temperature applications

Types of Diffusion Coatings

Various types of diffusion coatings are available and tailored to meet specific application and performance requirements. These include:

• Aluminide - Suitable for high-temperature oxidation protection. This forms a protective alumina scale within high-temperature exposure in air.
• Platinum-Modified Aluminide - Suitable for enhanced high-temperature oxidation and corrosion protection.
• Chromium/Silicon-Modified Aluminide - Engineered to protect against highly corrosive environments.
• Chromide - Built for type II hot corrosion protection and wear resistance.
• Silicide - Built for refractory metals and alloys at temperatures greater than 1200°C.

Diffusion Coating Processes

Pack Cementation

Pack cementation represents the traditional method of diffusion coating. In this process, components are immersed in a powder mixture containing the coating metal, halide activators, and inert fillers. When heated to elevated temperatures in a controlled atmosphere, the coating metal reacts with the activator and diffuses into the substrate surface. This method is effective for applying aluminide, chromide, and silicide coatings to medium to large components with simple geometries.

Vapor Phase

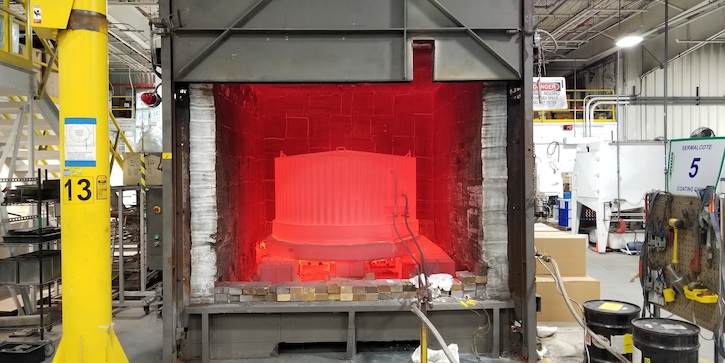

Vapor phase diffusion offers enhanced control over the pack cementation process, particularly in managing the flow of the gaseous mixture to coat the internal surface of turbine blades with complex serpentine cavities. This method provides a clean coating, without pack powder entrapment. In this process, the components to be coated are placed either above or beside the coating source materials and an activator within a retort. Inert gas can be introduced into the retort if needed. The plumbing is carefully designed to ensure that the generated vapors can reach both the external and internal surfaces of the components, enabling uniform coating. Once prepared, the retort is placed inside a furnace and maintained at the required temperature for a specified period of time to complete the coating process.

Slurry

In an alternative variation of the pack process, a coating slurry is applied directly to the surface of the component, which is then heated to diffusion temperatures. This approach is advantageous for coating specific, localized areas and for accommodating large or complex components. It allows for precise control over coating thickness and composition while ensuring high reproducibility across the process.

Chemical Vapor Deposition (CVD)

In the chemical vapor deposition (CVD) process, halide vapors, such as aluminum chloride (AlCl3), are produced in an external gas generator by passing hydrogen chloride (HCl) gas over aluminum pellets at approximately 300°C. These vapor-generating units are physically separated from the coating retort, which houses the components to be coated. The parts are securely fixtured inside the retort within a CVD furnace. Compared to the pack and vapor phase processes, the CVD method offers several advantages, including the ability to co-deposit multiple elements and precise control over the flow of halide vapors. However, these benefits come at a higher cost due to the complexity of the equipment and the need for regular preventive maintenance.

Related: What is Chemical Vapor Deposition (CVD)?

Applications of Thermal Diffusion Coatings

Protecting High-Temperature Components

Thermal diffusion coatings excel in protecting components exposed to extreme temperatures and corrosive environments. These coatings are widely used in various industries including aerospace, power generation, oil & gas, petrochemical, and clean energy. Gas turbine components, heat exchangers, and rocket engine components benefit from the coating's ability to form and maintain protective oxide scales that prevent further oxidation and corrosion under static and thermal cycling conditions.

Linde's Diffusion Coating Solutions

• Coating Types - A wide range of coating options is available, including aluminide, platinum-modified aluminide, chromium-modified aluminide, silicon-modified aluminide, chromide, platinum-modified chromide, and silicide.
• Coating Processes - Multiple advanced coating methods are utilized, such as the slurry process (featuring technologies like SERMALOY® J, SERMALOY® J CF, and SERMALCOTE®), the pack process, the vapor phase process, and the chemical vapor deposition (CVD) process.
• Global Diffusion Coating Facilities - Our state-of-the-art diffusion coating facilities are located across North America, Europe, and Asia to meet the diverse needs of our customers worldwide.

FAQs

What is the typical thickness of a thermal diffusion coating?
Thermal diffusion coatings typically range from 10 to 100 micrometers in thickness, depending on the application requirements and process parameters. The thickness is carefully controlled to optimize performance while maintaining component dimensional tolerances.

How does thermal diffusion coating differ from thermal spray coating?
While thermal spray coating creates a mechanical bond with excellent versatility across a wide range of applications, thermal diffusion coating forms a metallurgical bond with the substrate. Each process offers distinct advantages that can be selected based on specific application requirements and operating conditions.

Can thermal diffusion coatings be repaired?
Due to the metallurgical nature of thermal diffusion coatings, conventional repair methods are typically not effective. However, components can often be recoated after removing the existing coating layer and repairing the component for dimensional restoration.

What factors affect the cost of thermal diffusion coating?
The cost of thermal diffusion coating depends on several factors, including component size and geometry, coating material selection, process parameters, and the number of parts to be coated.
