What is Physical Vapor Deposition (PVD)?

Physical vapor deposition (PVD) is one of the most advanced and versatile thin film coating technologies in modern manufacturing. This sophisticated process transforms solid materials into vapor that condenses onto substrates to create high-performance coatings essential for semiconductors, electronics, medical devices, and cutting tools. As industries continue to demand higher-performance materials and more precise specifications, it is increasingly pressing for manufacturing and engineering professionals to understand PVD technology.

The Fundamentals of Physical Vapor Deposition

What is the Science Behind PVD?

PVD is a family of vacuum coating processes in which a solid material, known as the target, is converted into a vapor phase through physical means. This vapor then travels through a vacuum or low-pressure plasma environment before condensing on the desired substrate as a thin film. PVD relies on physical processes such as evaporation, ion bombardment, or plasma sputter bombardment to create these high-performance coatings.

The PVD process occurs at the atomic level, where individual atoms or molecules are removed from a source material through various physical mechanisms. These atoms traverse a controlled environment before depositing onto the substrate surface, forming a thin film through nucleation and growth processes. The controlled nature of this atomic deposition allows for exceptional precision in coating thickness, composition, and structure.

The process typically occurs in four distinct phases. First, the source material is energized, causing atoms to break free from the surface. Second, these atoms are transported through a controlled environment, often a vacuum chamber. Third, if reactive deposition is desired, they react with introduced gases or plasmas. Finally, the atoms condense on the substrate, forming a progressively growing film with carefully controlled properties.

Key Components of PVD Systems

A PVD system comprises several critical components working harmoniously to create precise, high-quality coatings. Each element plays a role in ensuring coating consistency, adhesion, and performance:

• Vacuum Chamber - Houses the entire process in a controlled environment
• Source Material (Target) - The material to be deposited, available in various purities and compositions
• Substrate Holder - Precisely positions and often rotates the items to be coated
• Vacuum Pumping System - Maintains the required pressure levels
• Power Supply - Provides energy for the vaporization process
• Process Control System - Monitors and adjusts critical parameters
• Gas Flow Controllers - Regulate process gases when needed
• Cooling System - Maintains optimal operating temperatures

Comparison to Other Deposition Techniques

Several established coating technologies serve different industrial needs, each with strengths and applications. Chemical vapor deposition (CVD) creates films through chemical reactions between gases or vapors at elevated temperatures, producing exceptionally pure and uniform coatings ideal for many semiconductor applications. Electroplating uses an electric current to reduce dissolved metal cations and form a coherent metal coating on an electrode, offering excellent scalability and cost-effectiveness for many industrial applications.

PVD, on the other hand, uses physical processes to create thin films in a vacuum environment. While CVD excels at producing conformal coatings at high throughput, PVD often operates at lower temperatures and offers precise control over film properties. Similarly, where electroplating provides efficient metal coating solutions, PVD expands material possibilities to include non-metallic substances and multi-component films.

Explore alternative technologies like cold spray for applications requiring thicker coatings or cold-working conditions.

5 Major Types of Physical Vapor Deposition Processes

1. Thermal Evaporation Deposition

Thermal evaporation is one of the simplest PVD methods. During this process, the source material is heated until it evaporates. This occurs in a high vacuum, allowing vapor particles to travel directly to the substrate with minimal collision. The method produces pure metallic coatings and is particularly valuable for optical coating applications where precise layer thickness is crucial.

2. Electron-Beam PVD (EBPVD)

Electron-beam PVD utilizes a focused beam of electrons to heat and evaporate the source material. This technique allows for higher vaporization rates and can easily handle materials with high melting points. The process produces exceptionally pure coatings with excellent adhesion, making it ideal for aerospace components and advanced optical applications.

3. Sputtering Deposition

Sputtering involves bombarding a target material with energetic particles, typically ions from a plasma, causing surface atoms to be ejected. These ejected atoms then deposit onto the substrate, forming a thin film. This versatile process allows for excellent film composition and thickness control, making it the preferred choice for semiconductor manufacturing and advanced electronics.

4. Pulsed Laser Deposition (PLD)

PLD employs high-power laser pulses to ablate material from the target surface. This technique offers exceptional control over film stoichiometry and is particularly valuable for depositing complex materials like high-temperature superconductors and advanced ceramic coatings. The pulsed nature of the process allows for precise layer-by-layer growth.

5. Cathodic Arc Evaporation

This process creates highly ionized plasma through an electrical arc at the target surface. The resulting coatings exhibit excellent adhesion and density, making them ideal for wear-resistant applications. Cathodic arc evaporation is ideal for producing hard coatings for cutting tools and mechanical components.

Applications and Benefits of PVD Coatings

Industrial and Manufacturing Applications

Physical vapor deposition is a valuable technology used in numerous industrial sectors, providing essential surface properties for various applications:

• Cutting Tools - Enhances wear resistance of stainless steel and carbide tools with hard coatings like TiN and TiAlN
• Automotive Components - Improves durability of engine parts and decorative finishes
• Aerospace - Provides thermal barrier coatings and oxidation resistance for turbine components
• Medical Devices - Creates biocompatible surfaces for implants and surgical instruments
• Molds and Dies - Extends service life and improves release properties
• Machine Components - Reduces friction and enhances wear resistance
• Solar Cells - Deposits transparent conductive oxides and active layers

Semiconductor and Electronics Uses

PVD is fundamental in creating the intricate layers necessary for modern electronic devices in the semiconductor industry. The process deposits conductive and barrier layers in integrated circuits creates metallic interconnects and produces specialized coatings for display technologies. The precision and purity achieved through PVD are essential for maintaining the increasingly stringent semiconductor manufacturing requirements.

Decorative and Protective Coatings

Beyond functional applications, PVD creates attractive, durable finishes for consumer products, architectural elements, and luxury goods. These coatings combine aesthetic appeal with practical benefits like scratch resistance, corrosion protection, and color stability. The process can produce a wide range of colors and finishes.

Advantages of PVD

Physical vapor deposition offers numerous advantages that make it the preferred choice for many coating applications:

• Exceptional Coating Quality - Produces dense, uniform films with excellent adhesion
• Environmental Friendliness - Uses no harmful chemicals and generates minimal waste
• Versatility - Can deposit virtually any type of material on most substrates
• Precise Control - Allows exact manipulation of coating thickness and properties
• Superior Performance - Creates coatings with enhanced hardness, wear resistance, and durability
• Low Processing Temperature - Minimizes thermal stress on substrates
• Excellent Reproducibility - Ensures consistent results across production runs

Linde AMT's PVD Coating Technology

As a global leader in advanced materials and coating technologies, Linde brings decades of expertise in EBPVD processes and high-purity sputtering materials. Our comprehensive understanding of PVD technology, state-of-the-art manufacturing facilities, and rigorous quality control systems ensure optimal performance for your coating applications.

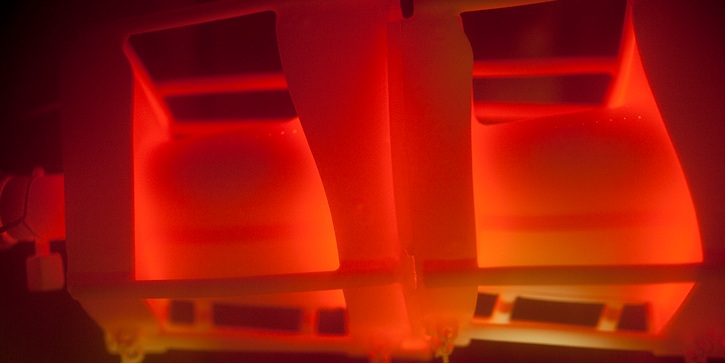

We specialize in applying EBPVD thermal barrier coatings to turbine blades and nozzles used in aircraft engine hardware. These coatings are created using vacuum deposition, where yttrium-stabilized zirconia is deposited in a reactive atmosphere under elevated temperatures to ensure durability and performance. In addition, we provide high-purity metallic targets designed for a range of PVD processes.
