Electroplating: Metal Coating Process & Applications

Surface technology innovation drives manufacturing success. Metal finishing processes directly impact product performance, durability, and market competitiveness. Electroplating is an indispensable coating technology for precision manufacturing, offering unparalleled control over metal deposition and surface properties. For manufacturing engineers and technical specialists seeking superior component protection and performance enhancement, understanding electroplating's capabilities, applications, and technical parameters is essential for optimizing production outcomes and meeting increasingly demanding industry specifications.

Explore our plasma spraying solutions for high-performance thermal barrier coatings.

What is Electroplating, and How Does It Work?

Electroplating is an electrochemical process that deposits a controlled metal layer onto a conductive substrate. This advanced coating method allows exceptional control over thickness, uniformity, and material properties, making it invaluable for industries requiring high-performance surface treatments.

Basic Principles of Electrochemistry

Electroplating operates on fundamental electrochemical principles. The process occurs in an electrolytic cell, where the movement of metal ions through an electrolyte solution occurs under the influence of an electrical current. When direct current passes between two electrodes immersed in an electrolyte containing metal salts, it triggers a reduction-oxidation (redox) reaction. The workpiece — the cathode — receives metal ions from the solution, which are reduced to metallic form, creating a precisely controlled coating.

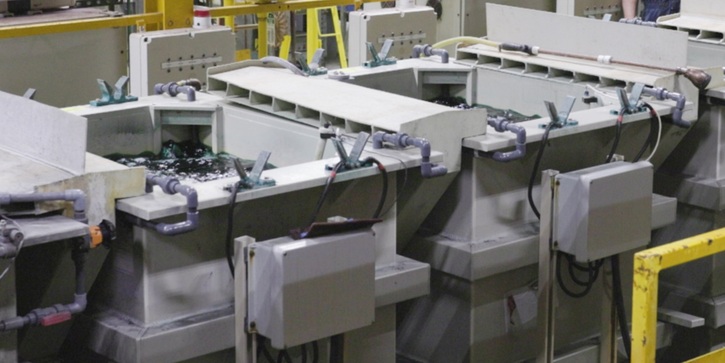

Components of an Electroplating System

A modern electroplating system integrates several components to achieve consistent, high-quality results. The primary elements include a power supply unit that provides precisely controlled direct current, an anode made from the plating metal or an inert material such as graphite, the cathode (workpiece) to be plated, and an electrolyte solution containing dissolved metal ions. Electroless plating (does not need a power supply and anode) is widely used.  This relies on electrochemical reactions between the electrolyte and part surface to generate the electrical current. Supporting equipment includes temperature control systems, filtration units, and agitation mechanisms that maintain optimal plating conditions.

Looking for alternative coating methods? Learn more about chemical vapor deposition for precision thin-film applications.

The Step-by-Step Electroplating Process

The success of electroplating depends on meticulous attention to each phase of the process. A properly executed electroplating operation follows a carefully controlled sequence to ensure coating quality and adherence:

1. Surface Preparation - Thorough substrate cleaning through degreasing, chemical cleaning, and mechanical preparation to remove contaminants and ensure optimal adhesion.
2. Pre-treatment - Application of specific chemical or mechanical processes to etch or activate the surface and create ideal conditions for plating.
3. Rinsing - Comprehensive rinsing with deionized water removes residual cleaning agents and prevents contamination.
4. Strike Layer Application - When necessary, a thin initial layer of metal (often nickel or copper) is deposited to improve adhesion and compatibility between the substrate and final coating.
5. Main Plating Process - The prepared workpiece is immersed in the plating bath, which is controlled by precise current density, temperature, and agitation.
6. Process Monitoring - Continuous observation of bath parameters, including pH, temperature, and metal concentration, to maintain optimal plating conditions. Chemical additives to adjust features such as hardness or brightness are often used and must be carefully monitored.
7. Post-plating Treatment - Application of specialized treatments to enhance coating properties and prevent oxidation.
8. Final Quality Inspection - Comprehensive coating thickness, adhesion, and surface finish testing to ensure specifications are met.

Common Materials Used in Electroplating

Metal Solutions and Electrolytes

Selecting appropriate electrolyte solutions is fundamental to achieving the desired coating properties. These carefully formulated baths contain specific metal ions and additives that control the plating process:

• Acid-Based Solutions - Provide excellent throwing power and fine-grained deposits
• Alkaline Solutions - Offer superior coating distribution and reduced hydrogen embrittlement
• Cyanide Solutions - Enable exceptional adhesion and brightness in specific applications but have significant health and safety challenges
• Sulfamate Solutions - Deliver low-stress deposits and high plating rates
• Pyrophosphate Solutions - Create ductile deposits with excellent uniformity

Popular Base Metals and Substrates

The choice of substrate material directly impacts plating success and final component performance:

• Steel and Steel Alloys - Excellent base material for numerous plating applications
• Copper and Copper Alloys - Ideal for electronic components and decorative applications
• Aluminum - Requires special preparation but is widely used in aerospace applications
• Zinc Die Castings - Common in automotive and consumer goods
• Stainless Steel - Used where additional corrosion resistance is required

Common Plating Metals and Their Properties

Different plating metals provide distinct advantages and performance characteristics for specific applications:

• Nickel - Superior resistance to corrosion and wear
• Chrome - Exceptional hardness and decorative appearance
• Silver - Excellent electrical and thermal conductivity
• Copper - Versatile underlayer and good conductor
• Zinc - Cost-effective corrosion protection

Electroplating Applications

Aerospace Industry

In aerospace applications, electroplating delivers critical surface properties that enhance component performance and longevity. From landing gear components requiring superior wear resistance to electrical connectors demanding precise conductivity, electroplated coatings meet rigorous industry standards while providing essential protection against harsh operating conditions. Specialized nickel and chromium plating processes are particularly valuable for turbine components, where high-temperature resistance and dimensional stability are paramount.

Automotive Industry

The automotive sector relies heavily on electroplating for both functional and aesthetic purposes. Engine components benefit from wear-resistant coatings, while exterior trim elements receive decorative finishes that withstand environmental exposure. Advanced electroplating processes ensure consistent quality across high-volume production requirements. Modern automotive manufacturing demands sophisticated selective plating techniques that handle complex geometries while maintaining strict cost controls.

Electronics Industry

Modern electronics demand increasingly sophisticated plating solutions. Electroplating from printed circuit boards to connectors provides essential electrical conductivity, solderability, and protection against environmental factors. The process allows for precise coating thickness control, critical for miniaturized components. The rapid evolution of semiconductor technology has driven innovations in selective plating techniques, enabling the creation of ultra-thin, uniform metal layers essential for advanced microelectronics. Precision gold and copper plating processes ensure reliable electrical connections in increasingly compact device designs.

Medical Industry

In medical applications, electroplating delivers biocompatible surfaces and precise dimensional control for surgical instruments, implants, and diagnostic equipment. The process must meet stringent regulatory requirements while ensuring consistent quality and performance. Advanced electroplating techniques enable the creation of antimicrobial surfaces through the precise deposition of silver or copper ions, enhancing patient safety.

Oil and Gas Industry

Components in oil and gas applications face extreme conditions requiring superior protection. Electroplated coatings offer protection from corrosion and wear for critical equipment operating in challenging environments. Combining high pressures, aggressive chemicals, and abrasive materials demands specialized coating solutions that can withstand years of continuous service. Hard chrome and engineered nickel-based coating systems have proven particularly valuable for protecting downhole tools and surface equipment from the combined effects of chemical attack and mechanical wear.

Benefits of Electroplating

Protective Coatings and Corrosion Resistance

Electroplated coatings create a robust barrier against environmental factors compromising component integrity. The process allows for precise control of coating thickness and composition, ensuring optimal protection for specific operating conditions.

By utilizing advanced multi-layer coating systems, manufacturers can achieve enhanced protection through the strategic combination of different metals, with each layer serving a specific protective function. These engineered coating structures have revolutionized component protection in particularly aggressive industrial environments.

Provide Specific Surface Qualities

Electroplating enables the engineering of surfaces with precisely tailored properties. The process can enhance electrical conductivity, reduce friction coefficients, improve wear resistance, or modify surface chemistry for subsequent processing steps. Each plating metal brings unique characteristics that can be leveraged to meet specific performance requirements.

Advanced plating techniques allow for the creation of composite coatings, combining multiple performance attributes in a single application process and revolutionizing surface engineering capabilities. Developing specialized plating processes has enabled unprecedented control over surface properties, allowing engineers to optimize components for specific operational demands.

Appearance Enhancement

Beyond functional benefits, electroplating transforms surface aesthetics through carefully controlled deposition of bright, semi-bright, or matte finishes. This versatility enables decorative applications and functional finishes that meet specific industry requirements.

Modern electroplating techniques can achieve exceptional surface uniformity and consistency through precise control of operating parameters and bath chemistry. The ability to create custom finish combinations, from mirror-bright chromium to sophisticated antiqued effects, makes electroplating particularly valuable in premium product applications.

Troubleshooting and Quality Control

Common Electroplating Problems

Successful electroplating requires careful attention to potential issues that can affect coating quality. Key challenges include poor adhesion, uneven coating distribution, and contamination effects. Understanding these challenges enables proactive process control and consistent results.

Implementing real-time monitoring systems and automated correction capabilities has significantly improved manufacturers' ability to maintain consistent coating quality. Modern process control techniques can identify and address potential issues before they impact product quality, substantially reducing defect rates.

Testing and Inspection Methods

Quality assurance in electroplating relies on comprehensive testing protocols. Methods include thickness measurement, adhesion testing, corrosion resistance evaluation, and microstructure analysis. These tests ensure coatings meet specified requirements and perform as intended. Advanced analytical techniques, including scanning electron microscopy and X-ray fluorescence analysis, provide unprecedented insight into coating structure and composition. Integrating automated inspection systems has enabled precise quality verification in high-volume production environments.

Test Cell Analysis

A critical aspect of quality control in electroplating involves using specialized test cells to evaluate and optimize plating parameters. The Hull cell, an industry-standard testing device, enables technicians to assess the effects of current density variations and bath composition on deposit quality in a single test.

For a more precise evaluation of macro throwing power — the ability of a plating solution to deposit metal uniformly across varying surface distances — the Haring-Blum cell provides quantitative measurements that help optimize bath formulations and operating conditions. These systematic testing methods allow plating engineers to predict full-scale production results and troubleshoot issues before they impact manufacturing.

Modern electroplating facilities often maintain dedicated test cell laboratories where new processes are developed and existing baths are regularly analyzed to maintain optimal performance. Integrating these test cell protocols into standard operating procedures has significantly improved first-pass quality rates and reduced the need for costly rework in production plating operations.

Maintaining Coating Quality

Consistent coating quality depends on rigorous process control and regular maintenance. This includes monitoring bath chemistry, maintaining current density, and ensuring equipment functionality. Regular analysis and adjustment of process parameters help maintain optimal plating conditions. Implementing statistical process control methods has revolutionized quality maintenance by enabling early detection of trending parameters that could affect coating quality. Modern filtration systems and continuous bath monitoring equipment have significantly reduced the risk of contamination-related issues while extending bath life.

Why Partner with Linde?

With decades of experience in surface technology and materials science, Linde brings unparalleled expertise to electroplating applications. Our advanced TRIBOMET™ process delivers superior results for complex geometries and demanding specifications. We combine industry-leading technical knowledge with comprehensive support services to ensure optimal coating performance.

Our global presence and local technical support enable us to serve diverse industry needs while maintaining consistent quality standards. Whether you require precision coatings for aerospace components or high-volume automotive applications, our team works closely with you to develop solutions that meet your specific requirements. Partner with Linde AMT to access cutting-edge coating technology and expert support that drives your operational success.

FAQs

What factors affect electroplating quality?
Key factors include surface preparation, bath chemistry, current density, temperature control, and proper maintenance of the plating solution. Consistent monitoring and control of these parameters ensure optimal coating quality.

How long does the electroplating process take?
Process duration varies based on the desired coating thickness, the type of metal being plated, and specific application requirements. Typical plating times range from minutes to several hours, with precise timing determined by technical specifications.

Can any metal be electroplated?
While many metals can be electroplated, the process requires a conductive substrate. Some non-conductive materials can be plated after applying a conductive base layer. The choice of plating metal depends on specific application requirements and compatibility factors.

What are the environmental considerations in electroplating?
Modern electroplating operations incorporate sophisticated environmental controls, including waste treatment systems, chemical recovery processes, and emission control measures. Compliance with environmental regulations is essential for sustainable operations.
